A Turning Point In MR Imaging
Dedicated To Musculoskeletal Imaging
Smooth And Simple Positioning
The Right Coil For The Best Exam Performance
Intuitive User Interface

G-scan Brio: Hassle-Free MRI

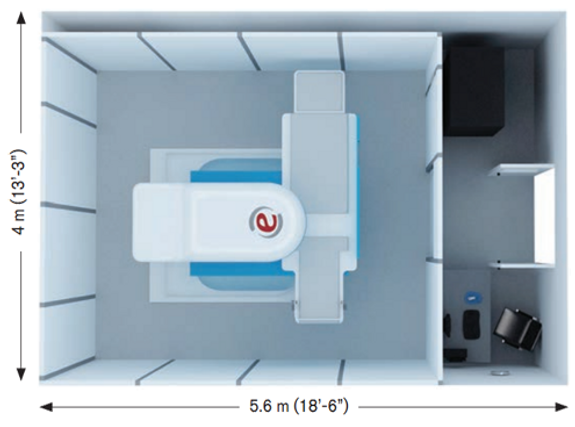

Like all Esaote MRI systems, G-scan Brio is a "one room" MRI system which means that the complete system, magnet, electronics and console can be installed in a single room of only 23 m2 (245 ft2).

G-scan Brio employs an optimized permanent magnet so no cryogens and no complicated cooling systems are required
Patented, light-weight pavilion style RF shielding can be independently installed without any additional construction
Room height requirements: minimum for Weight Bearing spine and knee examinations: 2.80 m (9.2 Ft); suggested for Weight Bearing spine, knee and ankle examinations: 3.30 m (10.8 Ft)
Total weight: 7.9 tons
Power supply voltage: 200-210/220-240 V @ 50/60 Hz

G-scan Brio Economics

All Esaote MRI systems are cost-effective because they offer optimized MSK performance at a much more competitive cost than standard whole body MRI systems. G-scan Brio is not only a unique clinical and diagnostic system, it is also easy to site and very economical to operate.

G-scan Brio's low break-even point is in line with the economic constraints of today's healthcare environment and make it an optimal investment for a private clinic or hospital.

Green MRI, Esaote's MRI Systems use a fraction of the power employed by traditional MRIs saving you thousands of $/Euro per year
Low Power Consumption: only 2.8 VA during acquisition, only 0,4kW on stand-by
Cost Effective: low break-even point

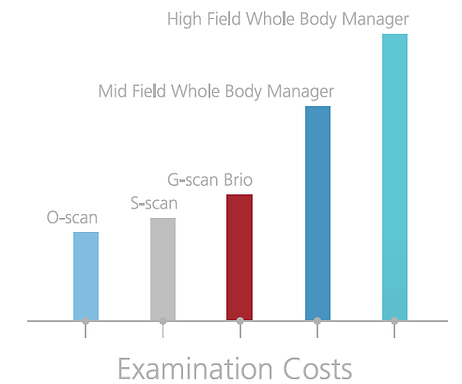

Examination Costs

Easy installation, ease of use, low maintenance technology, low energy consumption, no cryogens, and remote service all = a smart investment.

G-scan Brio: Adds Weight To Your Diagnosis

Describe your image

1/4

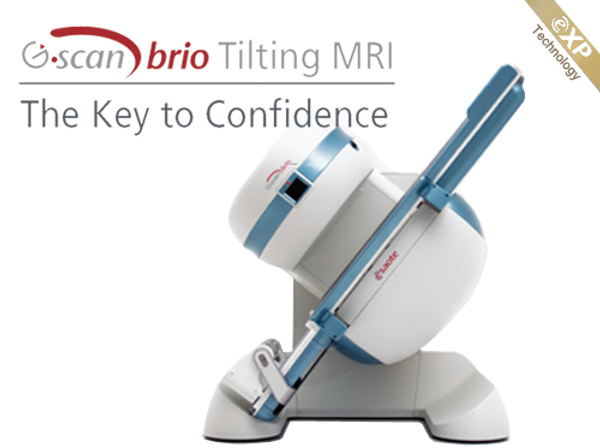

G-scan Brio offers a revolutionary MRI approach that increases diagnostic accuracy and confidence for musculoskeletal applications. With experience gained from first generation G-scan systems, Esaote developed G-scan Brio, a completely renewed Weight-Bearing MRI system featuring a new look, new ergonomics and new acquisition techniques.

O-scan: Engineered for Performance,
Designed for Comfort

O-scan-light-overview

Describe your image

o-scan-img-03

Describe your image

O-scan-light-overview

Describe your image

1/2

Delivers quality MRI while respecting specific budget or workload constraints thanks to the extremely low costs/scan.

Technology That Works For You
Easy And Fast Patient Positioning
Intuitive User Interface
Impressive Image Quality
Dynamic MRI

O-scan: Hassle-Free MRI

O-scan does more in less space. The innovative design integrates a complete MRI system including RF shielding, in one unique package, minimizing the total space needed for installation. Due to its low weight and extremely small 5 gauss footprint, O-scan can be installed in virtually any office or practice with ease.
The operator console, featuring a Windows® interface, can be located either inside or outside the scanning room, to accommodate both small diagnostic practices and large radiology departments.

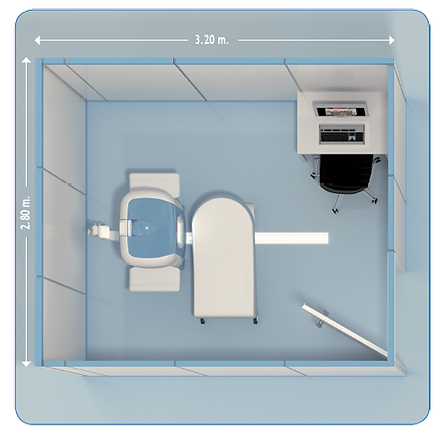

Very compact, installation space of 9 m² (100 Sq Ft) required
Low Power Consumption: only 1 Kw in normal 220/110V power outlet
No RF shielding cage required
Light-weight
Fits through standard doorways

O-scan Economics

Easy installation, ease of use, low maintenance, low energy consumption, no cryogens, and remote service make O-scan a smart investment even for sites with a low workload.

Green MRI, Esaote's MRI systems use a fraction of the power employed by traditional MRIs saving you thousands of $/Euro per year
Low Power Consumption: less than 1 Kw in normal 220/110V power outlet
Low running costs
Cost effective: low break-even point

S-scan, the Next Step In Office MRI

Describe your image

1/3

S-scan is perfectly in line with today's need for efficient and economic health care and is an optimal choice for any practice with a substantial musculoskeletal work-load.

Quality In MSK Imaging
Ease of Use
Real-Time Positioning
Intuitive User Interface
Easy Patient Access
Open ergonomic Gantry

Esaote MFRI systems are based on an optimized permanent magnet so no cryogens and no complicated cooling systems are required. Patented, light-weight pavilion style RF shielding can be independently installed without any additional construction or renovation.

S-scan Easy To Install And Maintain

S-scan is a “one room” MRI system which means that the complete system, magnet, electronics and console can be installed in a single room of only 20 m2 (238 ft2).

S-scan Economics

S-scan is one of the most economical MRI systems available, featuring easy installation, the patented Esaote RF pavilion, low energy consumption, no cryogens, and remote service capability. These features make S-scan suitable for sites with limited patient work-load.

Green MRI, Esaote's MRI systems use a fraction of the power employed by traditional MRIs saving you thousands of $/Euro per year.
Low Power Consumption: only 1 Kw in normal 220/110V power outlet.
Low running costs
Cost effective: low break-even point

The next generation Open MRI from Esaote

Describe your image

1/3

The technological evolution in MRI of the last years has seen important developments particularly in data acquisition and elaboration resulting in a substantial improvement in image quality and reduction of scan-times.

Today, the majority of MRI installations are about outcome-based services that not only address specific clinical needs, but also operational and financial demands.

This is the strength of Esaote's Magnifico, which incorporates latest MRI technology for uncompromised diagnostic quality, combined with a permanent magnet that guarantees low operating costs.

Magnify your possibilities
Intuitive User Interface
Easy Patient Access
Connectivity and Integration
Data security
Standalone operation
Network operation

Magnifico MRI: Siting

Thanks to its smart design the magnet unit and RF shielding will fit in a space of 20 m2 (212 sq.ft.).

Example of a typical installation.

Please contact your local representative for a personalized design for your site.

Power requirements

Power consumption: 0.5 kW in Unit OFF (thermal control); maximum 2.4 kW in acquisition mode.
Power supply from a single phase 220/110V power outlet

Compelling economics

Magnifico has been developed in line with the Esaote MRI philosophy which means quality MRI at reduced costs:

Compact installation
Easy operation
Low running costs

Low running costs

Power consumption: 0.5 kW in Unit OFF (thermal control); maximum 2.4 kW in acquisition mode.
No cryogens, no water cooling
Dedicated service contracts

Service

All Esaote systems come with remote service capability. Many system parameters and system components can be checked via the remote service program specially developed for Esaote MRI systems. The remote service capability allows Esaote to react to any potential issue and to get you up and running faster!

Upgrades

Esaote MRI systems are built for the future. With an average life cycle for an MRI system of about 11 years, being able to keep up with technology advances is important to satisfy market needs.
